Description
- 239-105 EHASR BURNER
- Capacity: 0.75 GPH thru 3.00 GPH, No. 1 or No. 2 fuel oil
- Fuel Pump: Standard 3450 TPM fuel pump, easy to service. One or two stage.

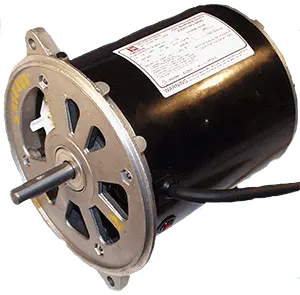

- Motor: 1/5 HP, NEMA standard, split phase, 3450 RPM, 115v/60Hz
- Ignition: 10,000v. constant duty transformer.TV-Radio interference proof. Positive make or break contact with electrodes. Swing away design swings open for easy access to gun assembly.
- Controls: control and cadmium cell are optional
- Nozzle Adapter: Patented no drip brass adapter ensures sharp oil cutoff when fuel pump shuts off. Bleeds from line, prevents after drip, eliminating smoke, soot, and carbon formation.
- Fan Housing: One piece die cast fan housing. High strength aluminum alloy maintains lifetime alignment of moving parts. No vibration. Less wear. Insures whisper quiet operation.
- Mounting: rigid flange, adjustable flange or pedestal mount available.
- Air Adjustment: Patented dual air adjusting bands interlock for positive air adjustment
- Air Tube: Heavy duty 13-gauge seamless steel tube material available in 3 5/8″ to 23″ lengths
- Flame Retention Head: High temperature stainless steel for longer life.
- Shipping Weight: Approximately 38 lbs.
- Wayne Combustion Systems
