Description

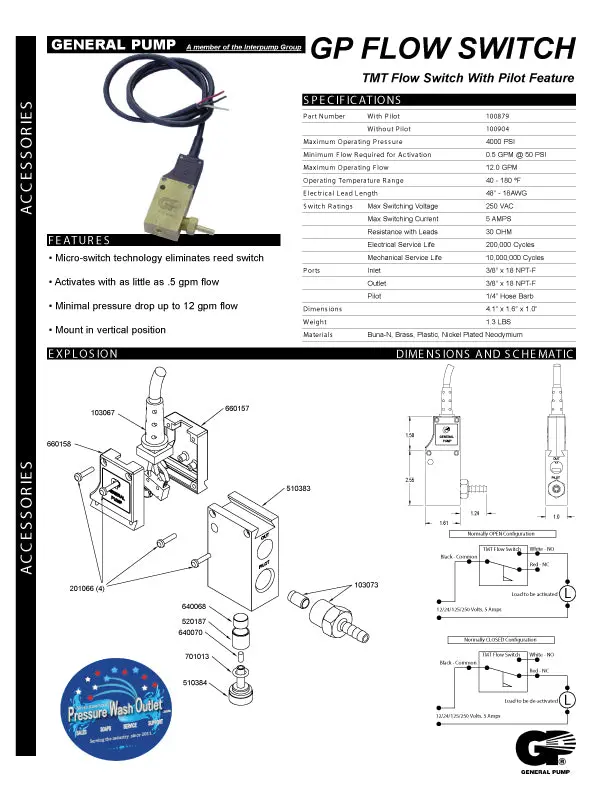

The 100879 flow switch
FEATURES:
- Micro switch technology eliminates reed switch
- High pressure inline flow switch
- Activates with as little as .5 gpm flow
- Minimal pressure drop up to 12 gpm
- Mount in vertical position
SPECIFICATIONS:
- 4000 PSI operating pressure
- 12 GPM maximum flow
- 40-180 F operating temperature
- Lead length: 48″ 18awg
- 250 VAC switching voltage maximum
- 5 Amps switching current maximum
- 30 OHM contact resistance with leads
- 200,000 operations electrical service life
- 10 million operations mechanical service life
- Inlet: 3/8″ FPT
- Discharge: 3/8″ FPT
- Pilot: 1/4″ hose barb
- Install the flow switch VERTICALLY to the output side of the unloader, with the 2 conductor lead wires exiting from the top. If your system uses a downstream chemical injector, it should be mounted on the output side of the flow switch. Pilot model requires a direct connection to the water supply feed line to provide a pilot signal. This is accomplished by installing a tee fitting (with a 1/4″ hose barb fitting) directly in the water supply feed line. The tube must be installed before the float valve. Install an appropriate length of 1/4″ ID reinforced polyvinyl tubing between the tee fitting and the valve pilot port.
