Studs For All Suzuki ATV and UTV’s!!!!!!!
Most Suzuki ATV’s and UTV’s Dont have a part Number to Cross Reference there studs they will only sell you a complete hub Assembly!!
The Fact is these are pressed in at the factory and can be pressed out and Replaced!!
All Suzuki’s Studs Use a 10MM x 1.25 Thread that is Approximately 1.35″ Long the only Difference is the size of the Knurl Diameter and Pitch.

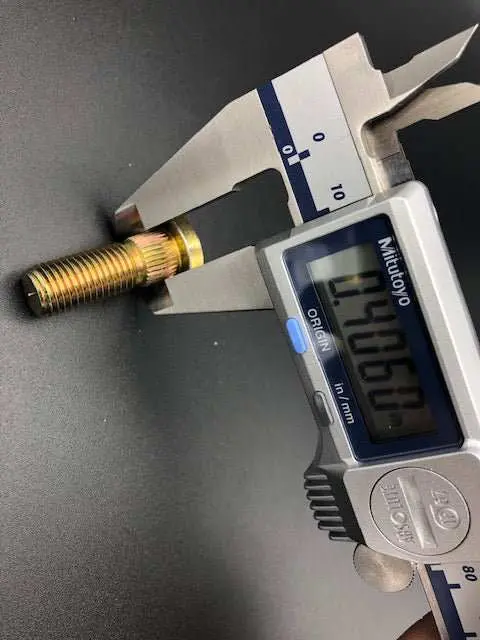

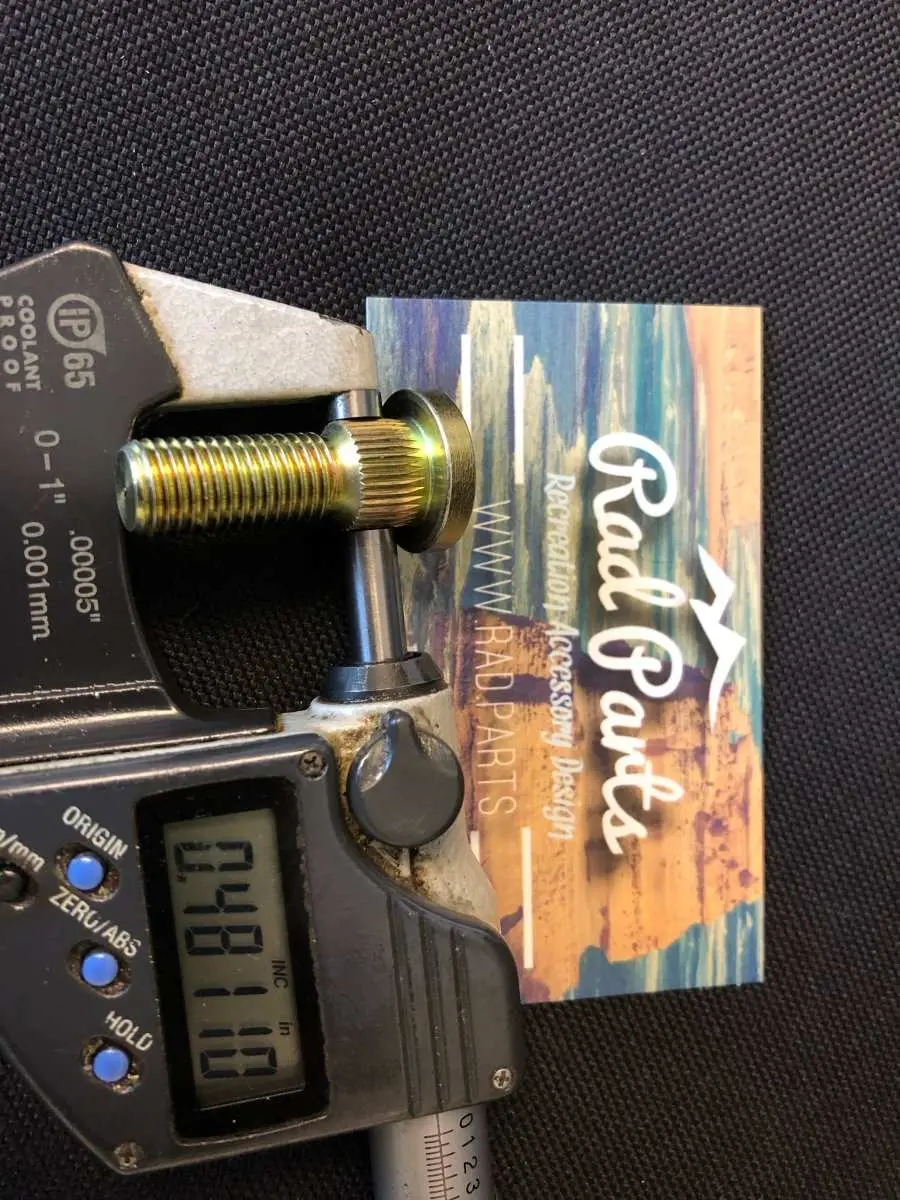

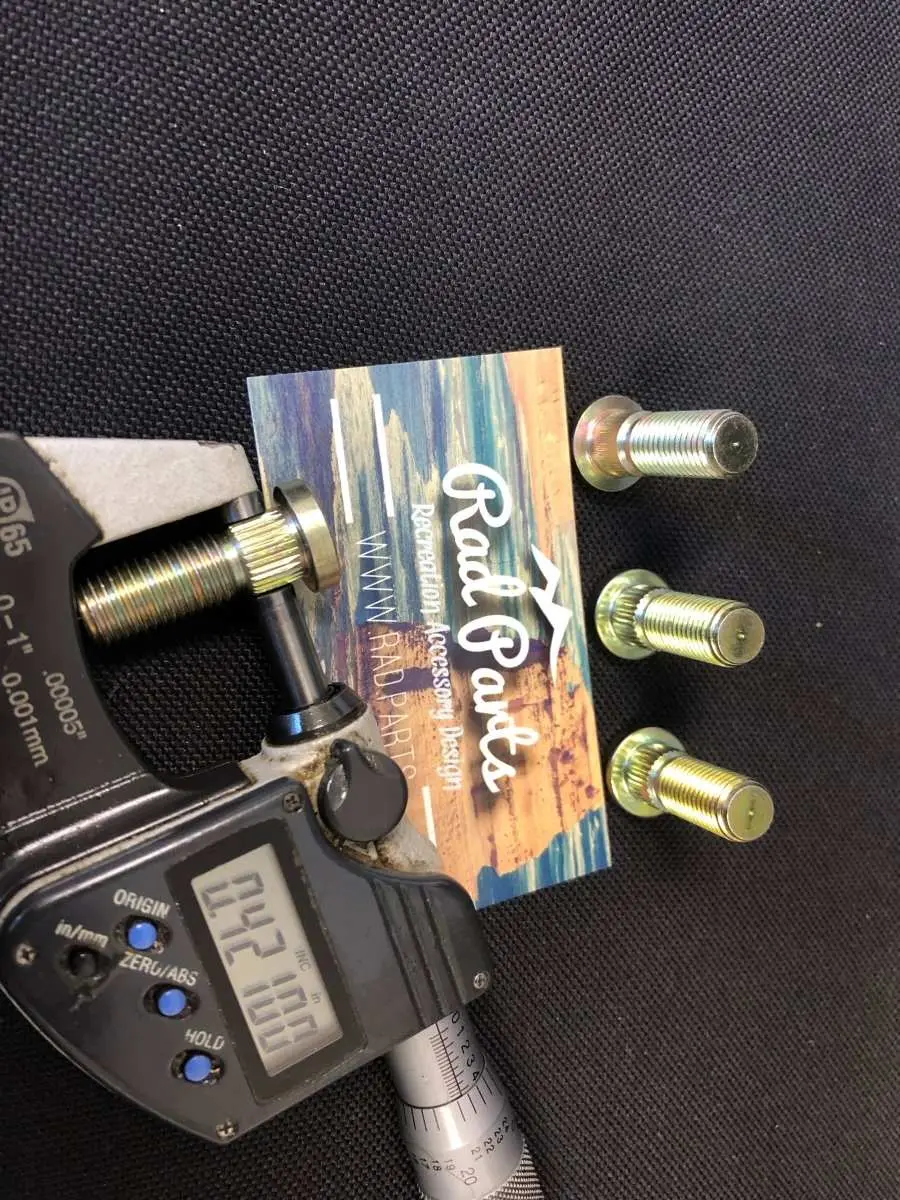

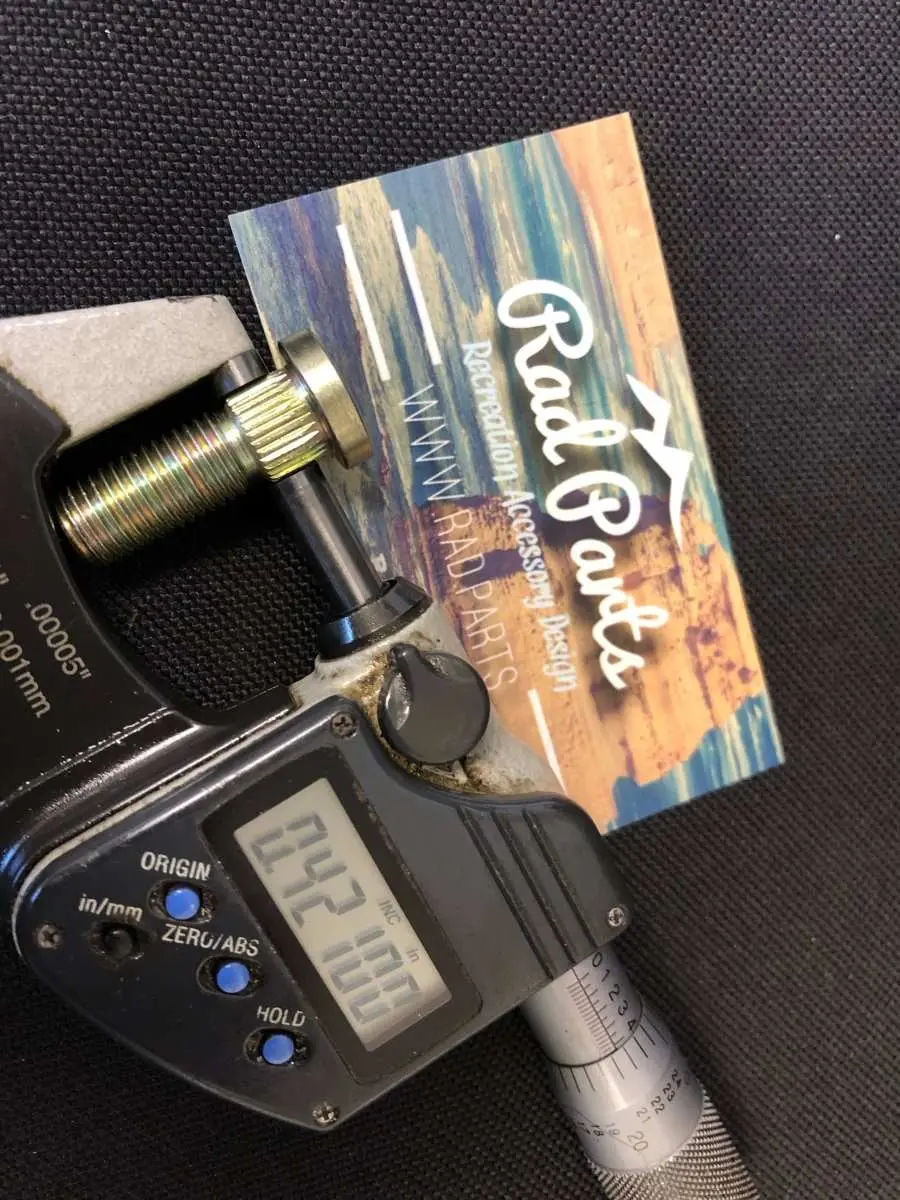

To Find the Correct Wheel Stud You MUST measure the Knurled Diameter
There are Three Different Varations
| Knurl Diam .481 .421 .406 |
|
Thread 10MM x 1.25 10MM x 1.25 10MM x 1.25 |
| Length 1.75″ 1.625″ 1.625″ |
We have tried to narrow down what studs fit which models before but suzuki changes the studs from year to year from front to back so without a part # to cross reference this makes it very difficult so we have set up this guide to clear some of the confussion
R.A.D Parts
We Create Quality Parts to high standards and close specifications we are a team of precision C.N.C machinist and engineers who are masters at creating quality precision parts for the recreation and powersports market all products that we make are 100% U.S. Made
100% Made in The U.S.A machined from 1144 stressproof Steel and Zinc plated to resist corrosion ..
These are NOT the typical cast Chinese import stud that every one else is selling
These are Forged CNC Machined and held to close tolerances
CNC MACHINED !!
HELD TO CLOSE TOLERANCES !!
GUARANTEED QUALITY!!
100% U.S MADE
GRADE 8 QUALITY 150,000psi TENSILE STRENTH!!
10MM x 1.25MM
ZINC PLATED
WILL NOT RUST!!
