Description

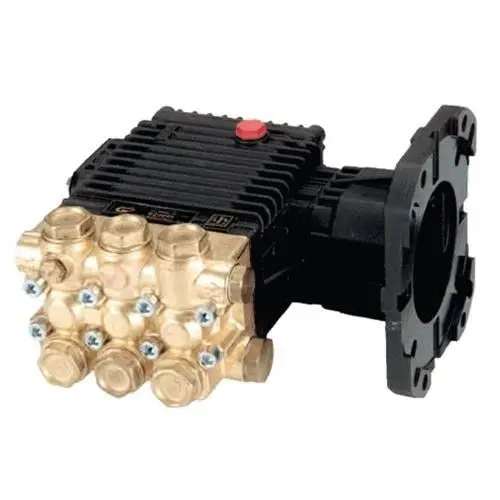

The EZ2536E pump by General Pump features:
| Max. GPM | 3.6 |
| Max. PSI | 2500 |
| RPM | 1750 |
| Bore | .708″ – 18mm |
| Stroke | .433″ – 11mm |
| Required HP | 6.2 EBHP |
| Shipping Weight | 19 lbs |
| Comes with | NEMA/184TC Flange |
Hollow Shaft – General Pump EZ 44 Series Specs: |
|
| Max. Inlet Pressure | 125 PSI |
| Max. Fluid Temperature | 165 Degrees Fahrenheit |
| Inlet Port Thread | 1/2″ – 14 BSP-F |
| Discharge Port Thread | 3/8″ – 19 BSP-F |
| Shaft Diameter | 1/1/8″ (1.125″) |
| Pump Dimensions | 8.8″ x 8.8″ x 6.3″ |
| Crankcase Oil Capacity | 14.0 oz (use GP Series 100 Oil) |
Hollow Shaft – General Pump EZ 44 Series Features:
- Triplex Plunger Pump.
- Forged brass manifold with exclusive lifetime warranty.
- Solid ceramic plunger design
- Die/cast, anodized aluminum oil bath crankcase
- Unitized stainless steel inlet and discharge valves
Replacement Parts Available
Valves – Kit 123
Piston Oil Seal – Kit 23
Packing’s – Kit 127
Packing’s with Brass – Kit 131
Pistons – 44040109
Valve Caps – Kit 124
Piston Bolts – 99317500
Crank Oil Seal – 90169000
