General Pump Electric Flange and Coupling Assemblies for Motorized Pumps

Description

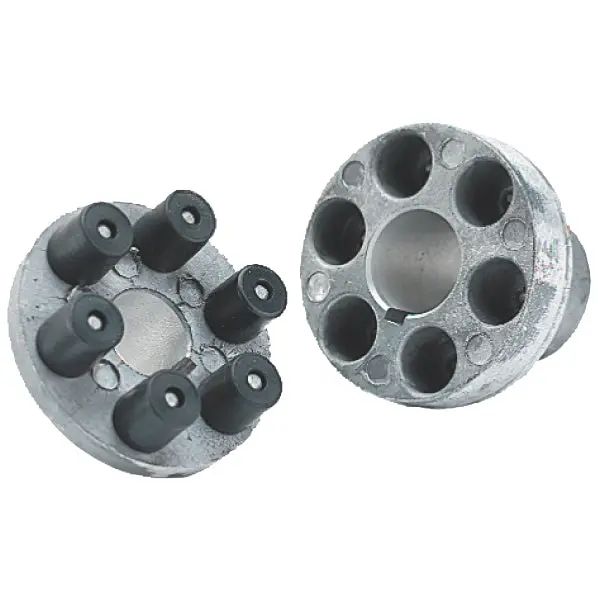

• Heavy-duty cast aluminum flange and self-adjusting resilient coupling
• Quiet, low maintenance drive system
• Easy-to-assemble with all required mounting hardware included
• Compact design

Assembly Procedures:

1. Pump and motor shafts should be free of nicks and burrs, coated with a film of anti-seize grease and keys installed.
2. Remove and discard retainer, where applicable.
3. Mount flange on pump, aligning pump shaft key with slot on flange.
4. Mount male half of coupler on pump; shaft end should be flush with coupler end.
5. Apply Loctite 242 to threads of set screw and tighten.
6. Mount female half of coupler on motor; shaft end should be flush with coupler end.
7. Apply Loctite 242 to threads of set screw and tighten.
8. Mount pump-flange assembly to motor. Pump must be in horizontal position for proper lubrication.
9. After assembly, observe coupler position through slot in flange. There should be about 1/8″ space between coupler halves.
