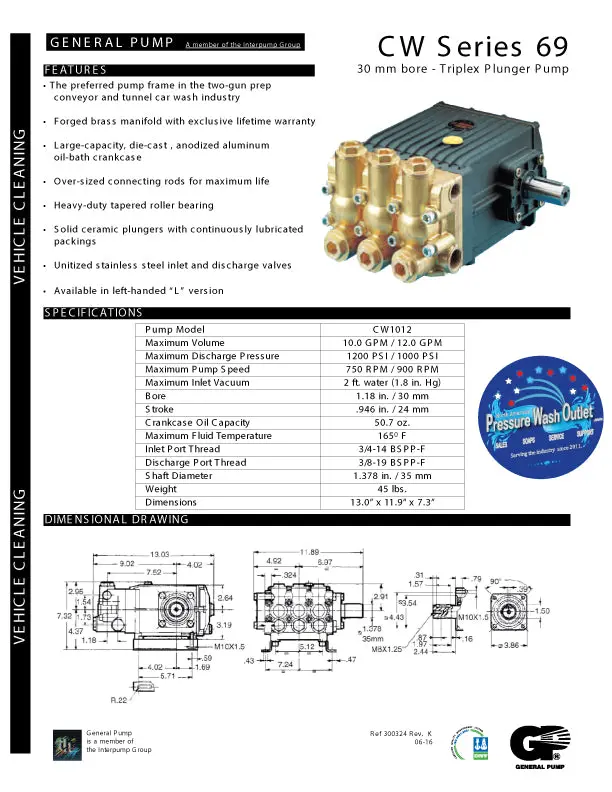

General Pump CW1012 Triplex Plunger Pump – Compact Design (Model 4537)

Description

Solid Shaft – General Pump CW 69 Series Features:

• Triplex plunger pump.
• The preferred pump frame in the two/gun prep conveyor and tunnel car wash industry.
• 12 GPM
• 1000 PSI
• 900 RPM
• 36 lb.
• Forged brass manifold with exclusive lifetime warranty.
• Large/capacity, die/cast, anodized aluminum oil/bath crankcase.
• Over/sized connecting rods for maximum life.
• Heavy/duty tapered roller bearings.
• Solid ceramic plungers with continuously lubricated packings.
• Unitized stainless steel inlet and discharge valves.

Replacement Kits Available

Valves – Kit 62

Piston Oil Seal – Kit 37

Packings – Kit 113

Packings with Brass – Kit 967

Pistons – 69040109

Valve Caps – 98231200

Piston Bolts – Kit 74

Crank Oil Seal – Kit 32
