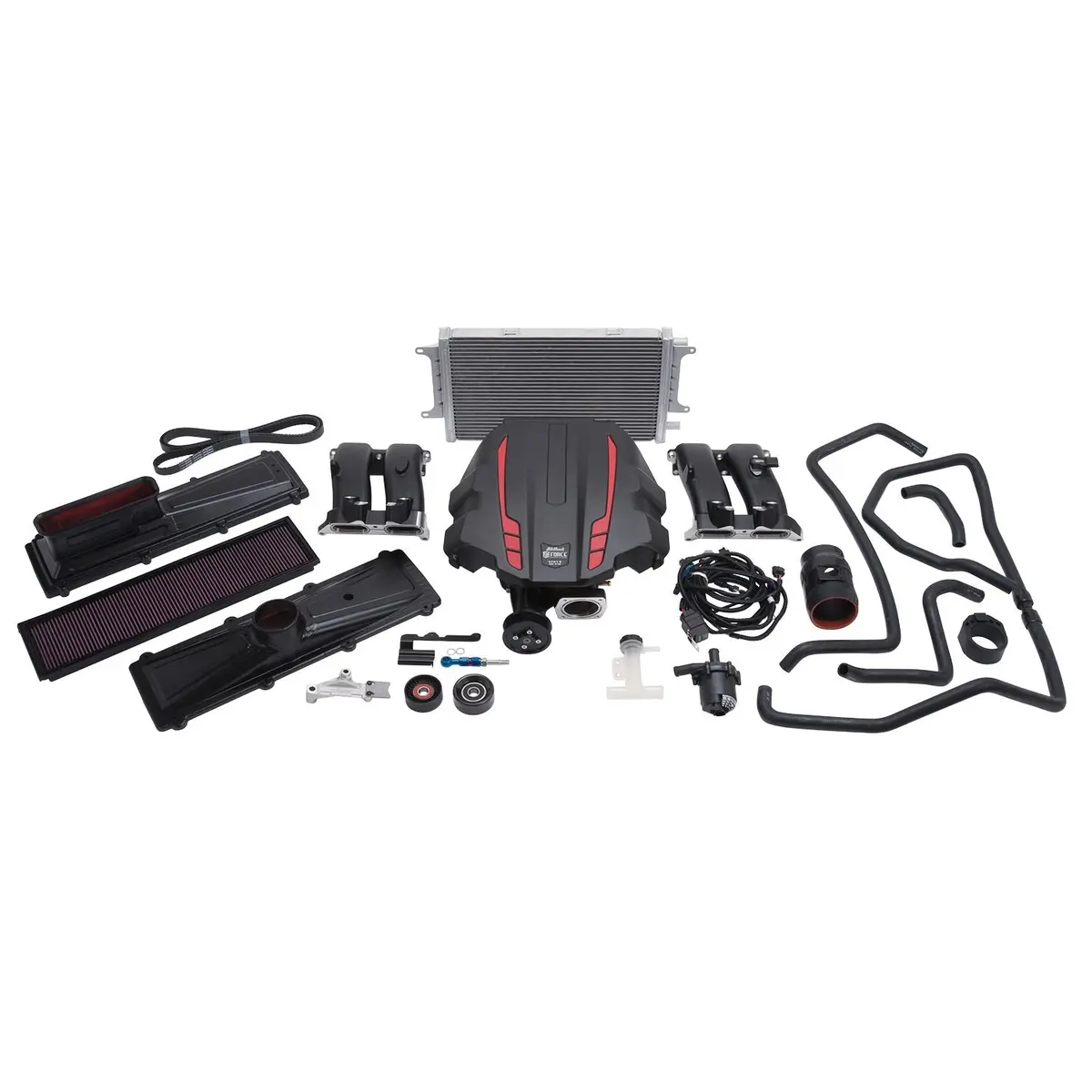

Edelbrock Stage 1 Supercharger Kit for 2012–2019 Subaru BRZ / Scion FR-S / Toyota 86 (2.0L, Includes Tuning)

Description

DETAILS

The Edelbrock Stage 1 Street Supercharger System part #1556 for 2012-19 Scion FR-S, BRZ, or Toyota GT86 increases the performance of your 2.0L engine to 242 horsepower and 186 ft-lbs of torque at the rear wheels. This Edelbrock Supercharger System is designed exclusively for the FA20/4U-GSE engine. Its unique inverted design utilizes the Eaton 1320 TVS rotor assembly for maximum efficiency in a compact package. This system features an efficient high flow inlet configuration that results in a shorter, less restrictive intake path for improved airflow and performance. An air-to-water intercooler and front mount heat exchanger deliver a cool, dense air charge resulting in dramatically improved performance, especially in the mid-range, where power dips have been eliminated for a smooth linear power curve. The supercharger assembly is finished with a durable black powder coating with red accents for a unique look that will let everybody know your car is Edelbrock supercharged! The Edelbrock #1556 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

SPECS

Availability	Available
Application	Application Specific
UPC	00085347015566
System Type	Stage 1 – Street System
Vehicle Model	FRS/BRZ/FT86
Housing Material	Cast Aluminum
Gasket Or Seal Included	Yes
Quantity	Kit
Oil Capacity	125 mL
Center Housing Cooling Type	Intercooler
Internal Step Up	Yes
Mounting Bracket Included	Yes
Outside Pulley Diameter	3.25 in
CARB Executive Order Number	D-215-116
Maximum Torque	186RW ft-lb
Maximum Horsepower	242RW
Availability Note	Available to Order
Warranty	36 Months
Emissions Code	EO Number: D-215-116
Hazardous Materials Warning	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting.; Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada.
Finish	Black Powder Coated
Maximum Boost Pressure	9 PSI
Pulley Belt Width	6-Rib
Universal Or Specific Fit	Specific
