Description

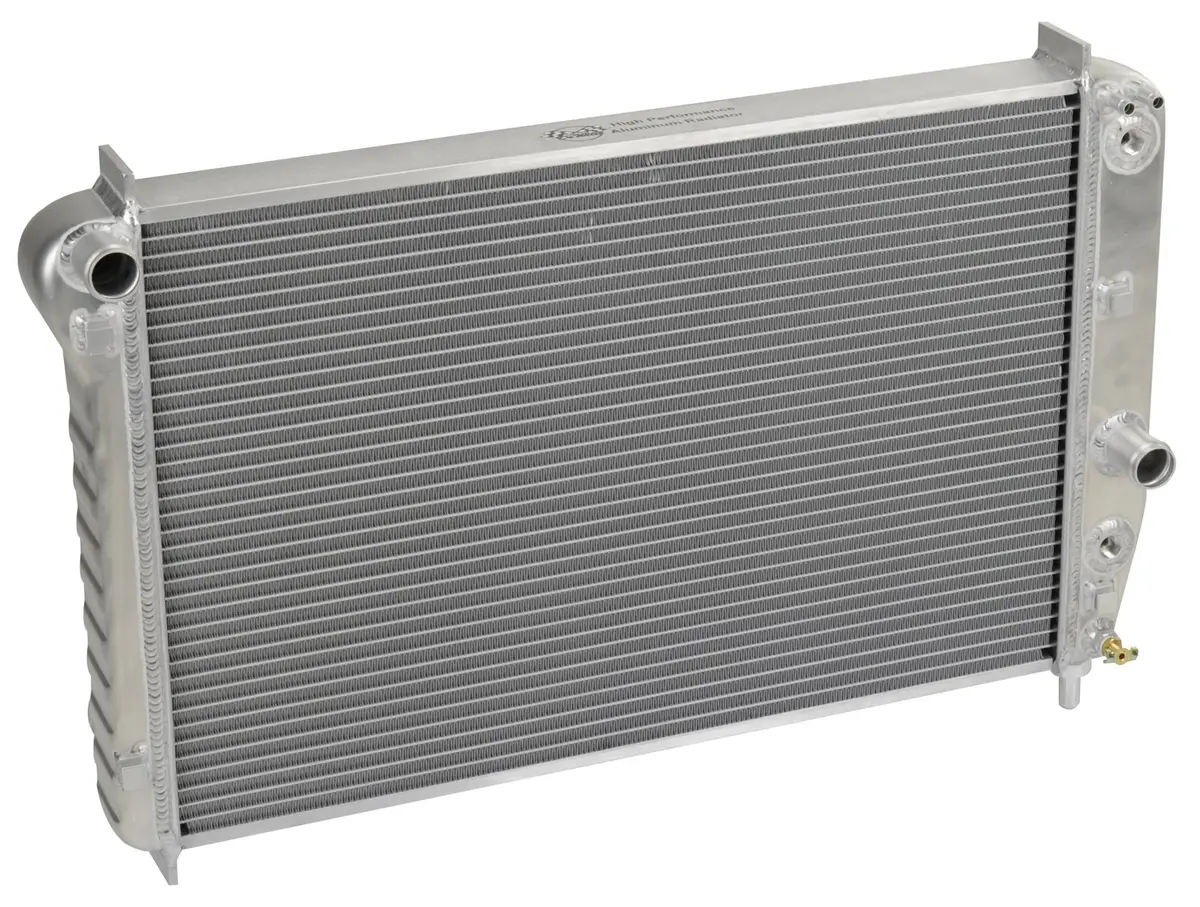

C6 CORVETTE (SHORT)

All the models below have a shorter core for blower clearance.

 DIRECT FIT® C6 RADIATOR FEATURES:

• Two row core (1.0″ wide tubes)
• Direct Fit Upgrade-No modifications
• No gaskets or plastic tanks
• Billet aluminum end tanks with no fabrication seams
• 7-plate (TOC & EOC) coolers where applicable
• Factory Quick connect transmission fittings included
• 100% assembled, brazed, and welded in USA
• Proven design over 10 years running
• Lifetime Warranty

APPLICATIONS


1139125M  This model has no internal coolers and fits:

• Base models with manual transmission. Non-Z51 option

1139125A– This model includes one 7-plate internal oil (TOC) cooler on the passenger side. GM quick connect fittings included. Applications are:

• All Z06 (Except 2012 w Z07)
• All C6 with Automatic transmission
• All dry sump engines

1139125B– This model includes a 7-plate internal oil cooler for both engine oil cooling (EOC) and transmission (TOC) cooling. Fits the following:

• 2005-2006 Z51
• 2007-2009 wet sump motors

1139105E-This a non-factory option. It was created  for those wanting to add internal type engine oil cooling. The oil ports are 3/4-16 SAE straight thread o’ring seal. You can use the factory GM oil line assembly (quick connection fittings required) or install the #10AN fittings and use SS hose assemblies.

1139125Z- 2013 Corvette cut down version for models: Z06,, Z51, Grand Sports with engine-mounted oil cooler

RADIATOR & FAN COMBINATIONS

The best of both worlds! Here we combine the DeWitts Direct Fit radiator with Spals dual 11″ (2800 CFM) electric fans. Click HEREfor fan kit only.

Model: 4139125M
Model: 4139125A              (Photo)
Model: 4139125B
Model: 4139125E
Model: 4139125Z
