Canton Shallow Oil Pan – 12-Inch Sump Length For Small-Block Chevy Circle Track Applications

Description

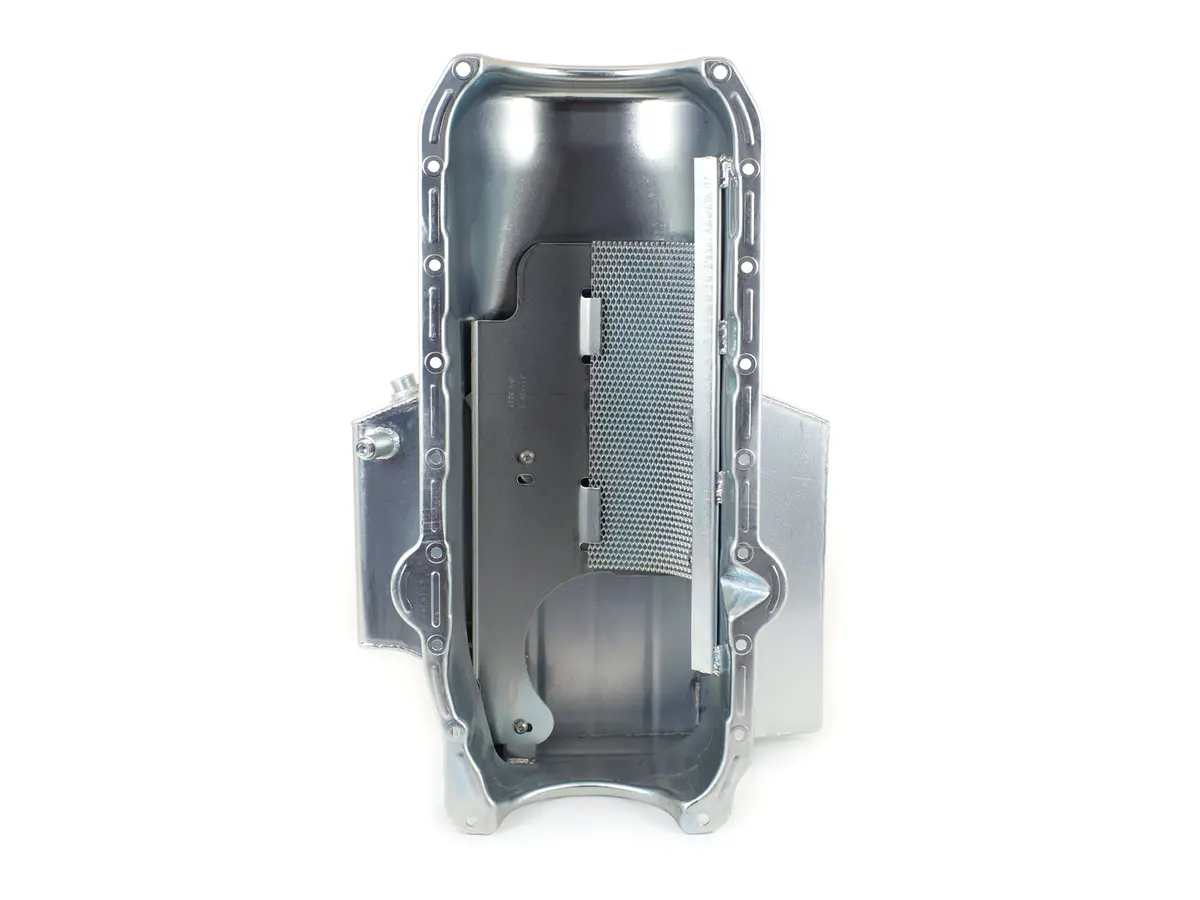

This Competition wet sump is for ’86 and newer Small Block Chevys with one piece seal. It is designed for applications where the engine is set extra low in the chassis. Fits front steer chassis with both aftermarket and Camaro front ends. The pan has a 6-1/2″ deep, 15″ wide, 12″ long sump, and a 7 quart system capacity. Requires one of our pickups.

• 7 qt System Capacity
• 3.75″ Stroke Clearance
• Six Trap Door Baffles & Three Runners
• Crank Scraper
• Bolt in Slosh Baffle
• Built in Windage Tray
• 1/2″ NPT Temperature Bung
• Provison for our Pan Mounted Dipstick
• Magnetic Drain Plug

Attributes:

• Brand Name: Canton
• GTIN: 00887753711151
• Baffled: Yes
• Capacity: 7 Quart System Capacity
• Crank Scraper Included: Yes
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Engine: For S.B. Chevy 1986 and newer blocks with one piece seal
• Feature 1: Baffled with 6 Trap Doors/3 Directional Runners
• Feature 2: Bolt On Slosh Baffle For Oil Control
• Feature 3: Removable Screen Windage Tray and Built in Crank Scraper
• Feature 4: Reduces Crank Windage And Saves Horsepower
• Feature 5: Provision for Canton Pan Mounted Dipstick
• Feature 6: 1/2 NPT Temp Sensor Bung
• Feature 7: Magnetic Drain Plug
• Finish: Silver Plating
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: Yes
• Material: Steel
• Pickup Included: No
• Recommended Accessory 1: 20-030 – Pickup for Small Block Standard Volume Pumps M55 & M55A
• Recommended Accessory 2: 20-031 – Pickup for Small Block High Volume Pumps M55HV
• Recommended Accessory 3: 20-032 – Pickup for Small Block Standard Volume Pumps M155 w/ 3/4″ Tube
• Recommended Accessory 4: 20-850 – Universal Dipstick Kit 1/4? N.P.T. Fitting
• Recommended Accessory 5: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
• Recommended Accessory 6: 88-100T – SBC ’86+ Oil Pan Gasket
• Windage Tray Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 16.25 x 9.5 inches
• Weight: 20 POUNDS
