Description
The Annovi Reverberi XM11.17N, N version 24mm solid shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The XM11.17N can produce up to 3000 Max PSI, 2.9 Max GPM, and is designed to operate at 1450 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the XM11.17N weighs in at 14 lbs and boasts a sleek compact design.
| Max GPM | 2.9 |
| Max L/Min | 11 |
| Max PSI | 2800 |
| MaxBar | 170 |
| Power EBHP | 5 |
| Bore Dia mm | 15 |
| Stroke mm | 14.4 |
| Crankshaft ID Stamp | 1 |
| Inlet | 1/2″ F |
| Outlet | 3/8″ F |
| Max Temp | 140° F |
| Oil Capacity (oz) | 14.5 |
| Weight | 14 |
| RPM | 1450 |
| Shaft Size | 24mm |
| Shaft Version | N |
| Shaft Type | Solid |
Replacement Parts
Valve Kit 1864 (3381)
Piston Kit (15) 2544 (6325)
Piston Kit (18) 2545
Water Seal Kit (15) 2741 (4459)
Water Seal Kit (18) 2747 (6476)
Oil Seal Kit 2786 (6480)
Pump Manual

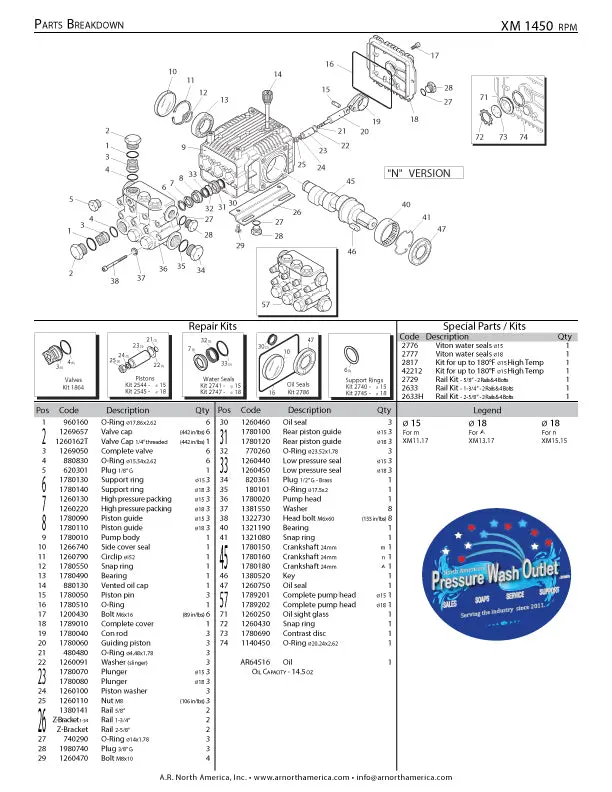

Pump Breakdown
