Allanson Step-Down Transformers for Ignition & Control Circuits

Description

Known at “iron core” transformer, it draws 120 vac into the primary coil. The steel plates of the transformer core transfer the primary coil’s 60Hz magnetic field to the secondary coil.

The secondary coil uses this field to produce a high output voltage of 10,000 VRMS open circuit (when there is no secondary current flowing) that has a frequency of 60Hz.

Allanson transformers are designed and tested to burner manufacturers specifications and have a history of proven reliable performance.

• Designed with high temperature wire
• Runs cooler, quieter, and safer on all types of burners
• Meets American and European noise emission standards offering superior EMI and RFI protection.

Models:

• 2721-628G    120v Beckett A, AF End (6258)

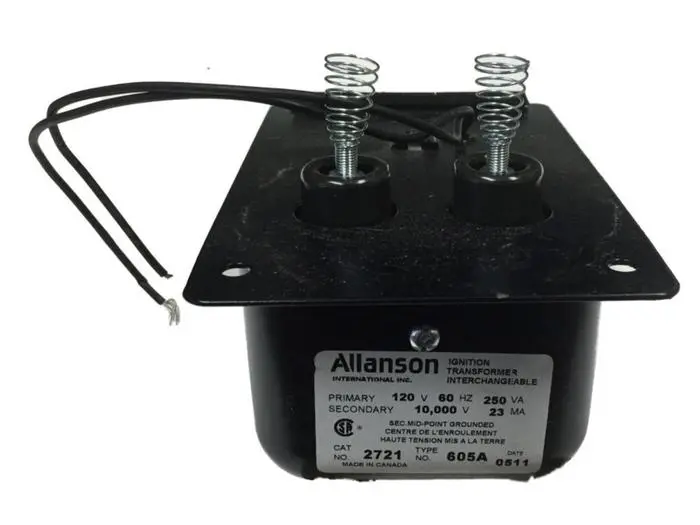

• 2721-605       120v Beckett ‘S’ End (6204)
• 2744-628G     240v Beckett A, AF End (6229)

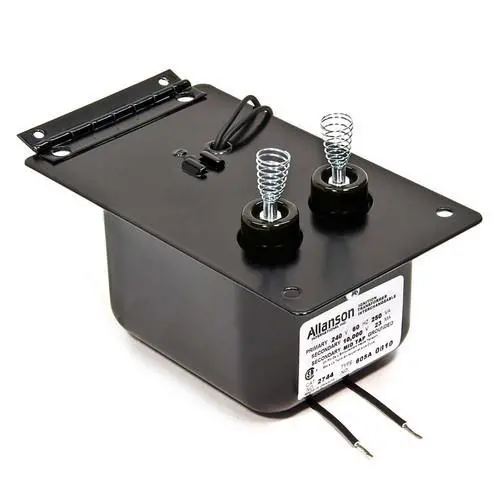

• 2744-605       240v Beckett ‘S’ End (6222)

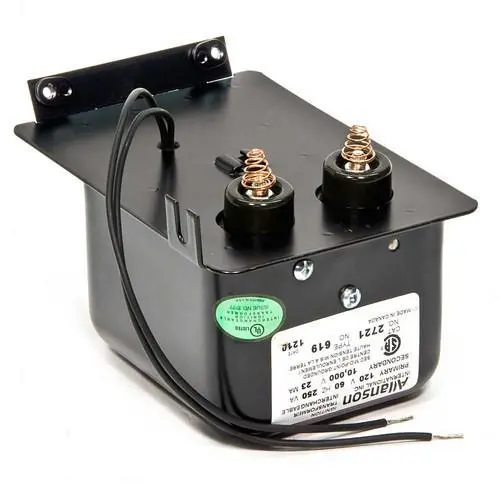

• 2721-619       120v Wayne M & HS End (6205)
• 2721-620       120v Wayne “E” Side (6206)
• 2744-620        240v Wayne “E” Side (6211)
